Series KB | Refrigerated incubators with compressor technology

code : KB720

Important characteristics

  • Temperature range (Model 23): 0 °C to 100 °C
  • Temperature range (Models 53, 115, 240, 400, 720): -5 °C to 100 °C
  • APT.line™ preheating chamber technology
  • Refrigeration with compressor refrigerated unit
  • Door heating system from 240 liters
  • Adjustable fan speed
  • Controller with time-segment and real-time programming
  • Inner door made of tempered safety glass
  • 2 stainless steel racks
  • Units up to 115 liters are stackable
  • Access port with silicone plug from 240 liters
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Computer interface: Ethernet

Select version
Rated voltage Option model Version Art. No. MSRP*[?] Selection Bookmark
Model KB 720
200…240 V 1~ 50/60 Hz

Standard

 KB720-230V¹ 9020-0204 - +

Standard

 KB720UL-240V¹ 9020-0306 - +
* Recommended retail price



Designation KB720UL-240V¹ KB720-230V¹
Option model Standard Standard
Order number 9020-0306 9020-0204
Measures
Interior volume [L] 698 698
Net weight of the unit (empty) [kg] 304 304
permitted load [kg] 150 150
Load per rack [kg] 45 45
Doors
Inner doors 2 2
Unit doors 2 2
Internal Dimensions
Width [mm] 970 970
Height [mm] 1250 1250
Depth [mm] 576 576

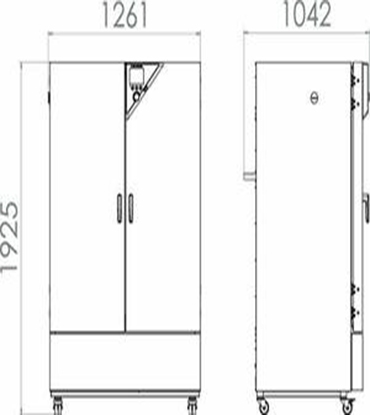

Outer dimensions
Width net [mm] 1250 1250
Height net [mm] 1925 1925
Depth net [mm] 885 885
Wall clearance sidewise [mm] 100 100
Wall clearance back [mm] 100 100
Environment-specific data
Energy consumption at 37 °C [Wh/h] 360 360
Sound-pressure level [dB(A)] 53 53
Fixtures
Number of shelves (std./max.) 2/15 2/15
Online
Shop URL https://www.binder-shop.com/us/incubators/refrigerated-incubators/refrigerated-incubator-with-compressor-technology-kb720ul-240v -
Performance Data Temperature
Temperature range [°C] -5…100 -5…100
Temperature variation at 37 °C [± K] 0.2 0.2
Temperature fluctuation at 37 °C [± K] 0,1 ± K 0,1 ± K
Recovery time after 30 seconds door open at 37 °C [min] 3 3
Electrical data
Rated Voltage [V] 200…240 200…240
Power frequency [Hz] 50/60 50/60
Nominal power [kW] 2.3 0
Unit fuse [A] 16 16
Phase (Nominal voltage) 1~ 1~
  1. All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10 %. The temperature data is determined in accordance to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. Technical data refers to 100 % fan speed. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
