RANGE OF SYSTEMS This product guide shows the range of our ultra pure water systems and will help to select the best system for your needs.

Advantages of the new systems

• Compact housing • Big touchscreen

• Remote Service module

• Menus and wizards easy to use and mistake avoiding

• New fi xed an fl exible dispenser

• Easy access for cartridge exchange

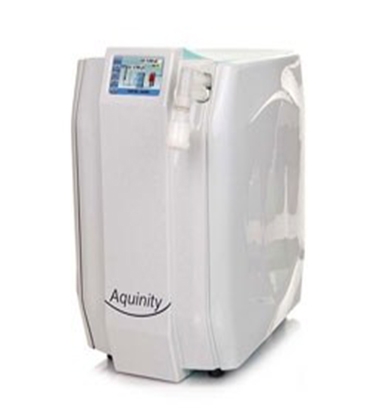

Aquinity² P10

 Aquinity² models produce ultra pure water directly from municipal or potable tap water. The Aquinity² P10 is equipped with a reverse osmosis (RO) to produce deionized water directly into an integrated 10 l tank. In the next step Type I water is produced with a polisher cartridge. The model Aquinity² P10 is ideal for laboratories with a lower daily need of ultra pure water.

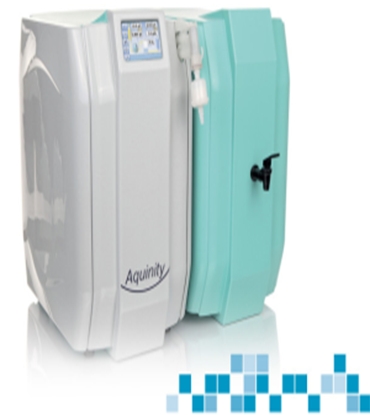

Aquinity² P35 / P70

Aquinity² P35/P70 versions have an independent tank from where RO water can be tapped (e.g. for glass ware cleaning). The water quality from this tank depends on the feed water quality; in general the RO holds back 98% of all ions. The tank can be installed at the side, above the system or even underneath the bench. Tapping of ultra pure water is done with our fi xed and fl exible dispenser as in all membraPure UPW systems. With the Aquinity² P35/P70 versions also a TOC monitoring is available. Aquinity² P35/P70 is the perfect system for a midsize lab.

Aquinity² E35 / E70

Aquinity² E35/E70 systems contain an additional electro deionization (EDI) cell to produce Type II water with a production rate of 10 l/h. The systems are equipped with 35 l or 70 l storage reservoirs. The water can be dispensed directly from the reservoir. In Aquinity² E35/E70 models the water from the reservoir has a very high quality of <0.1 μS/cm and can be therefore be used for less sensitive applications. Also this high water quality prevents the polisher cartridge to be exhausted quickly. So for all labs which use more than 100l/day the Aquinity² E35/ E70 is also an economical and ecological (less waste) wise decision. All Aquinity models are available in different versions (Reagent, Analytical & LifeScience) main screen Aquinity2 E

Astacus²

To produce ultra pure water Astacus² systems are fed with de-ionized water. Astacus² models are designed for a daily consumption of less than 100 l and are equipped with a MemPak purifi cation cartridge. Astacus² is available in different versions (Reagent, Analytical & LifeScience) to meet the specifi c requirements of ultra pure water for different applications. The systems also have the new fi xed and fl exible dispenser and a big touchscreen with easy to use menus and wizards.
