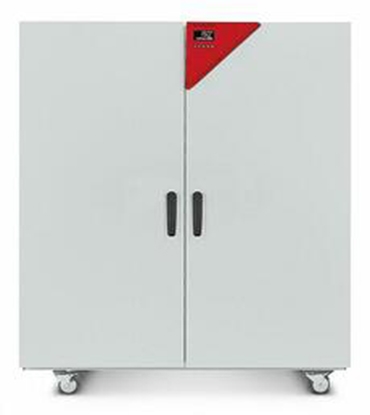

Series ED 720 | Drying and heating chambers Avantgarde.Line with gravity convection

code : ED720

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • High temperature accuracy thanks to APT.line™ technology
  • Gravity convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
  • Ergonomic handle design
  • USB port for recording data

Select version
Rated voltage Option model Version Art. No. MSRP*[?] Selection Bookmark
Model ED 720
400 V 3~ 50/60 Hz

Standard

 ED720-400V-I¹ 9010-0341 - +
* Recommended retail price



Designation ED720-400V-I¹
Option model Standard
Order number 9010-0341
Measures
Interior volume [L] 743
Net weight of the unit (empty) [kg] 169
permitted load [kg] 315
Load per rack [kg] 45
Doors
Inner doors 2
Unit doors 2
Internal Dimensions
Width [mm] 960
Height [mm] 1280
Depth [mm] 605

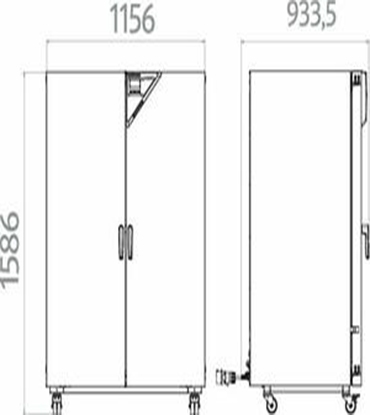

Outer dimensions
Width net 1165 mm
Width net [mm] 1165
Height net 1590 mm
Height net [mm] 1590
Depth net 870 mm
Depth net [mm] 870
Wall clearance sidewise [mm] 100
Wall clearance back [mm] 160
Environment-specific data
Energy consumption at 150 °C [Wh/h] 700
Fixtures
Number of shelves (std./max.) 2/16
Data
  -
Performance Data Temperature
Temperature range 5 °C above ambient temperature to [°C] 300
Online
Shop URL https://www.binder-shop.com/us/oven/oven-with-gravity-convection-ed720-400v
Performance Data Temperature
Temperature variation at 150 °C [± K] 3.2
Temperature range 5 °C above ambient temperature to 300 °C
Temperature fluctuation at 150 °C [± K] 0.8
Temperature variation at 150 °C 3,2 ± K
Heating-up time to 150 °C [min] 85
Temperature fluctuation at 150 °C 0,8 ± K
Heating-up time to 150 °C 903.00 85 min
Recovery time after 30 seconds door open at 150 °C [min] 25
Recovery time after 30 seconds door open at 150 °C 25 min
Electrical data
Rated Voltage [V] 400
Power frequency [Hz] 50/60
Nominal power [kW] 4.1
Unit fuse [A] 16
Phase (Nominal voltage) 3~
  1. All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10%. The temperature data is determined in accordance to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
