Series ED 260 | Drying and heating chambers Avantgarde.Line with gravity convection

  • Home
  • Series ED.
  • Series ED 260 | Drying and heating chambers Avantgarde.Line with gravity convection
Share

Series ED 260 | Drying and heating chambers Avantgarde.Line with gravity convection

code : ED260

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • High temperature accuracy thanks to APT.line™ technology
  • Gravity convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
  • Ergonomic handle design
  • USB port for recording data

Select version
Rated voltage Option model Version Art. No. MSRP*[?] Selection Bookmark
Model ED 260
240 V 1~ 60 Hz

Standard

 ED260UL-240V¹ 9010-0340 - +
230 V 1~ 50/60 Hz

Standard

 ED260-230V¹ 9010-0339 - +
* Recommended retail price



Designation ED260UL-240V¹ ED260-230V¹
Option model Standard Standard
Order number 9010-0340 9010-0339
Measures
Interior volume [L] 255 255
Net weight of the unit (empty) [kg] 85 85
permitted load [kg] 270 270
Load per rack [kg] 40 40
Doors
Unit doors 1 1
Internal Dimensions
Width [mm] 610 610
Height [mm] 760 760
Depth [mm] 550 550

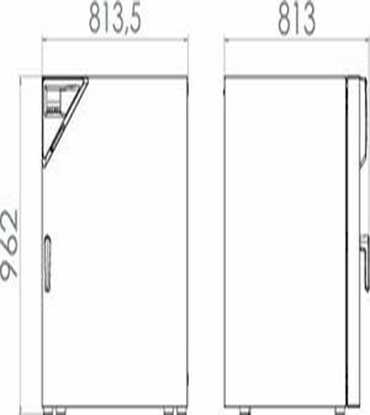

Outer dimensions
Width net [mm] 810 810
Height net [mm] 965 965
Depth net [mm] 760 760
Wall clearance sidewise [mm] 100 100
Wall clearance back [mm] 160 160
Environment-specific data
Energy consumption at 150 °C [Wh/h] 355 355
Fixtures
Number of shelves (std./max.) 2/8 2/8
Data
  - -
Online
Shop URL https://www.binder-shop.com/us/oven/oven-with-gravity-convection-ed260ul-240v -
Performance Data Temperature
Temperature range 5 °C above ambient temperature to [°C] 300 300
Temperature variation at 150 °C [± K] 1.8 1.8
Temperature fluctuation at 150 °C [± K] 0.8 0.8
Heating-up time to 150 °C [min] 50 50
Recovery time after 30 seconds door open at 150 °C [min] 20 20
Electrical data
Rated Voltage [V] 240 230
Power frequency [Hz] 60 50/60
Nominal power [kW] 2.45 2.25
Unit fuse [A] 16 12.5
Phase (Nominal voltage) 1~ 1~
  1. All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10%. The temperature data is determined to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
