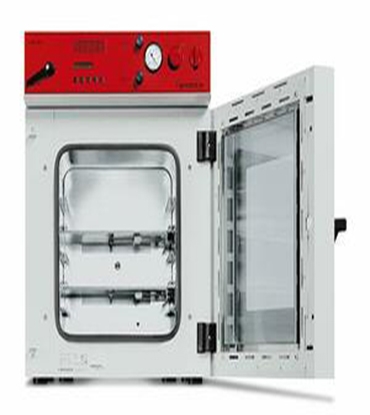

Series VD 53 | Vacuum drying chambers for non-flammable solvents

code : VD53

Important characteristics

  • Temperature range: room temperature plus 15 °C to 200 °C
  • APT.line™ preheating chamber technology
  • Controller with time-segment and real-time programming
  • 2 aluminum expansion racks
  • Inert gas connection
  • Shatterproof, spring-mounted safety glass panel
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422
  • 2 relay outputs, 24 V DC (max. 0.4 A)

Select version
Rated voltage Option model Version Art. No. MSRP*[?] Selection Bookmark
Model VD 53
230 V 1~ 50/60 Hz

Standard

 VD053-230V¹ 9030-0030 - +
120 V 1~ 60 Hz

Standard

 VD053UL-120V¹ 9030-0036 - +
* Recommended retail price



Designation VD053UL-120V¹ VD053-230V¹
Option model Standard Standard
Order number 9030-0036 9030-0030
Measures
Interior volume [L] 53 53
Net weight of the unit (empty) [kg] 95 95
permitted load [kg] 45 45
Load per rack [kg] 20 20
Doors
Unit doors 1 1
Internal Dimensions
Width [mm] 400 400
Height [mm] 400 400
Depth [mm] 340 340

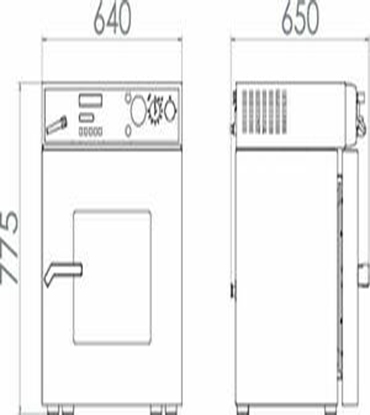

Outer dimensions
Width net [mm] 635 635
Height net [mm] 775 775
Depth net [mm] 550 550
Wall clearance sidewise [mm] 135 135
Wall clearance back [mm] 100 100
Viewing window width [mm] 350 350
Viewing window height [mm] 307 307
Fixtures
Number of shelves (std./max.) 2/5 2/5
Performance Data Temperature
Temperature range 15 °C above ambient temperature to [°C] 200 200
Temperature variation at 100 °C [± K] 2 2
Temperature fluctuation [± K] 0,1 ± K 0,1 ± K
Heating-up time to 100 °C [min] 80 80
Vacuum Data
Permitted end vacuum [mbar] 0.01 0.01
Leak rate [bar/h] 0.01 0.01
Electrical data
Rated Voltage [V] 120 230
Power frequency [Hz] 60 50/60
Nominal power [kW] 1.2 1.2
Unit fuse [A] 12.5 10
Phase (Nominal voltage) 1~ 1~
Connections
Vacuum connection with small flange [DN mm] 16 16
Measuring access port with small flange [DN mm] 16 16
Inert gas connection with flow limiter (RP") 3/8 3/8
  1. All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10%. The temperature data is determined in accordance to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
