Product Code
HP1-2D
Description

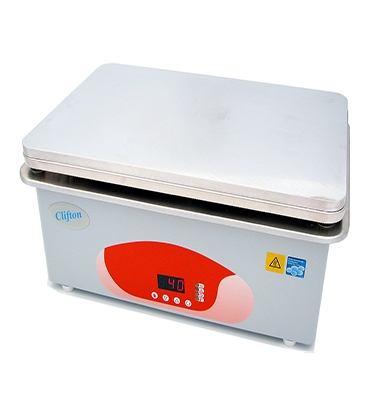

This digital hotplate features a precision PID control providing degree-by-degree temperature setting and control, for refined hotplate sensitivity. Temperature and time settings are retained in memory, even after power off.

Featuring a hob surface, which overlaps the body to ensure that no spillages enter the controls. The hob is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area.

Painted surfaces and controls feature antibacterial protection and also chemically resistant, easy to wipe clean surfaces. The controls feature a bright LED display indicating measured temperature. Temperature settings can be easily adjusted using the push buttons.

Sand bath kits allow samples to be directly immersed in a dry and high temperature environment. The product accepts standard laboratory retort rods which enable scaffolding to be constructed so that vessels can be heated without direct contact with hot surface.
Controls
Featuring bold LED display of measured temperatures in real-time, increments of 1°C, using precision PID temperature control. Setting for hob temperature only or combination of temperature and time. Timer setting variable in 1-minute increments from 00:01 [hh:mm] to 99:59 [hh:mm] with “end” message on completion-timed period. Settings retained even after turning the unit off.

Easy to use splash proof controls, touch keypads for setting time and temperature values with indicators for heating, over temperature alarm and timer. Bold digital LED display.

The hotplate can be set to run at a set temperature or commence the timer once the hob reaches set temperature.

Features auto setting over temperature alarm protecting your work at set temperature.

Every unit undergoes a factory calibration at two temperatures for validation.
Safety Features
The temperature alarm is automatically set 10˚C above set temperature. When in alarm condition the indicator illuminates and actual bath temperature is shown, if hotplate is over temperature heating is switched off. Once hob temperature has fallen below the alarm setting the indicator clears and actual hob temperature is shown.

Hob temperature displayed, indicating the hob is hot in use.

Hotplate is fitted with non-slip rubber feet for safety.

Hob overlaps the body to reduce chance spillages enter the controls.
Power Consumption (220-240V)
2000W
Warranty Period
3 Years
Features and Benefits
1. Solid aluminium top plate with excellent thermal properties.
2. Choice of three sizes suiting your needs for either large hotplate working area down to a small size unit.
3. Featuring and on/off mains switch and heater on indicator.
4. The hob overlaps the base ensuring spillages do not ingress into the controls.
5. Easily converted into a sand bath with accessory kit for direct immersion of samples.
6. Accepts laboratory scaffolding.
7. Hob maximum temperature 350°C.
8. Fitted with non-slip rubber feet for safety.
9. Fitted with an IP rated clear booted on/off mains switch preventing ingress of moisture.
10. Easy to clean hob.
11. Sturdy construction - powder coated exterior providing a durable chemical resistant.
12. Built to latest safety standards and supplied with comprehensive operating instructions and Three-year warranty.
13. Each hotplate is uniquely identified with its own serial number recorded on our product database, which includes all of its manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate
