AZURA HPLC Plus System Article No.: A46005

code : A46005

System Proposal

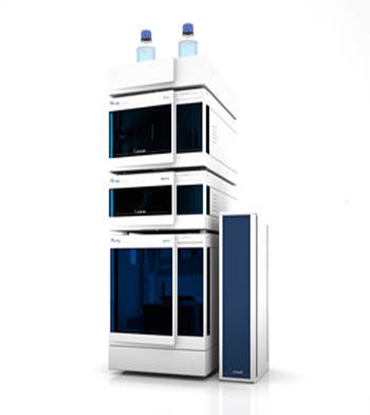

This system features a AZURA P 6.1L HPG/LPG pump, an Autosampler 6.1L, a column thermostat CT 2.1, a UVD 2.1L UV/VIS detector with 1-variable UV measuring channels from 190 - 750 nm, as well as a Tablet PC with AZURA Mobile Control. It is the standard system with a backpressure range of 700 bar. It perfectly fits the demanding needs of a method development system, as well as the robust fitness of a routine analysis machine.

The P6.1L with a LPG configuration features a new LPG valve for the most reise blending effciency. The internal degassing unit will prevent air bubbles in the system. Every P 6.1L comes with an attached mixing chamber, which can be changed to a larger volume depending on the applications needs.

The UVD 2.1L comes with an installed deuterium lamp which covers a wavelength range from 190 to 750 nm. It is a competitively priced HPLC for routine HPLC applications including fast LC methods.

The Autosampler 6.1L can inject 0.1 – 5000 µl to have a large flexibility. Using standard vials or two microtiter plates will give you a maximum sample capacity of up to 768 samples or 108 vials.

The AZURA CT 2.1 is suitable for column thermostatization above and below room temperature. The instrument operates with a microprocessor controlled Peltier element for exact temperature settings.

Key features

  • Complete gradient analytical HPLC system
  • Variable single wavelength 1-channel UV/VIS Detector
  • Pump unit with pressure sensor for a low pulsation eluent supply (max. 700 bar)
  • AZURA Mobile Control unit allows direct control of all integrated modules
  • Complete software package ClarityChrom
  • Leakage protection
  • PC with Monitor
  • Tubing scheme
  • Application note

Analytical system

Application area HPLC
Pump system Gradient
Gradient Quarternary LPG
Injection Autosampler
Detector Variable single wavelength detection UV/VIS
Software ClarityChrom, Mobile Control
Pressure 700 bar
Column thermostat Yes

Accessories AZURA HPLC Plus System Article No.: A46005
