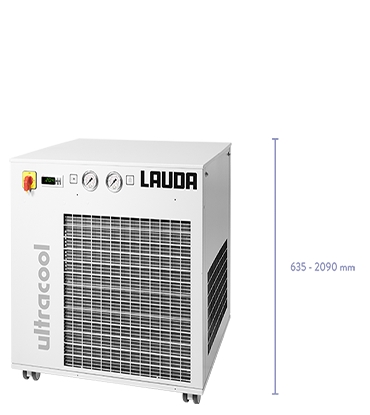

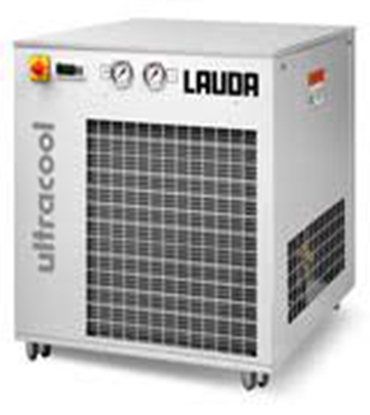

LAUDA Ultracool

code :

Process circulation chillers for industrial applications with cooling capacities up to 265 kW at working temperatures from -5 up to 25 °C in ambient conditions from -15 up to 50 °C

LAUDA Ultracool chillers provide reliable temperature control and ensure secure processing. The chillers of the UC series are available as Ultracool Standard (ST) and Ultracool Superplus (SP). All chillers are already equipped with an antifreeze protection thermostat to prevent freezing of the heat exchanger.



Integrated pressure switches protect the circuit against pressure levels that drift too high or too low. Housings made from galvanized steel and externally coated with epoxy resin protects against corrosion even under aggressive ambient conditions. Most of the models are suitable for outdoor installation. The Ultracool Standard units provide the necessary cooling capacity for customers who already have a pump and a water reservoir installed. The Superplus models are plug & operate systems equipped with a cold water tank, a centrifugal pump and an internal bypass

  The Ultracool advantages Your benefits
  • Centrifugal high-quality water pump with internal bypass
  • Use of plate heat exchangers outside of the water tank
  • Evaporator and pump in stainless steel construction
  • Level switch
  • Allows flow rates from 0 to 100 percent
  • Efficient heat exchange and low energy loss
  • Corrosion resistant
  • Pump protection in case of low level
  • Integrated water filter and antibacterial additive
  • Insulated water tank made of polyethylene
  • Use of thermostatic expansion valve
  • Protection of application and chiller system
  • Corrosion resistant and durable
  • Automatic adjustment to changing work load conditions and optimal cooling output
  • Protection class IP 54
  • Suitable for ambient temperatures up to 50 °C
  • Housing made from galvanized steel and externally coated with epoxy resin
  • Antifreeze protection thermostat
  • Use of refrigerants with low global warming potential (GWP* < 2,500)
  • Suitable for outdoor installation
  • Operation under extreme ambient temperature conditions
  • Protection against corrosion even under aggressive ambient conditions
  • Prevents freezing of heat exchanger
  • Fulfills the European F Gas Directive No. 517/2014
  • Versatile options, including pump, special color, stainless steel housing, wheels, external bypass, water-cooled versions, DI water, etc.
  • Customization possibilities for OEM
  • Compact and smart design
  • Integrated pressure switches
  • Large cold water tank
  • User friendly installation and maintenance and reduction of footprint to save installation space
  • Protection of the refrigeration circuit against pressures that drift too high or too low
  • Keeps water temperature constant even under varying load conditions

UC Mini Superplus

Technical features   UC 2 UC 3 UC 4
Select to compare:
Working temperature range °C -5…25 -5…25 -5…25
Ambient temperature range °C -15…50 -15…50 -15…50
Cooling output* kW 2.1 4.1 4.9
Pump pressure nominal** bar 3.3 3.0 2.8
Pump flow nominal** L/min 5.6 10.3 13.8
Volume water tank L 20 20 20
Cat. No. 230 V; 50 Hz   E6002411 E6003411 E6004411
Cat. No. 230 V; 60 Hz   E6002431 E6003431 E6004431


SUMMARY

SUMMARY

SUMMARY

* At 10 °C water outlet temperature and 25 °C ambient temperature, for 50 Hz versions

** Nominal values: at a temperature difference of 5 K between inlet and outlet at the given cooling capacity

UC Midi Standard

Technical features   UC-0060 ST UC-0080 ST UC-0100 ST UC-0140 ST UC-0180 ST UC-0240 ST
Select to compare:
Working temperature range °C -5…25 -5…25 -5…25 -5…25 -5…25 -5…25
Ambient temperature range °C -15…50 -15…50 -15…50 -15…50 -15…50 -15…50
Cooling output* kW 7.1 9.4 11.7 14.5 22.0 26.3
Cat. No. 400-440 V; 3/PE; 50 Hz   E6813108 E6813110 E6813112 E6813114 E6813116 E6813118
Cat. No. 440-480 V; 3/PE; 60 Hz   E6813308 E6813310 E6813312 E6813314 E6813316 E6813318


SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

UC Midi Superplus

Technical features   UC-0060 SP UC-0080 SP UC-0100 SP UC-0140 SP UC-0180 SP UC-0240 SP
Select to compare:
Working temperature range °C -5…25 -5…25 -5…25 -5…25 -5…25 -5…25
Ambient temperature range °C -15…50 -15…50 -15…50 -15…50 -15…50 -15…50
Cooling output* kW 7.1 9.4 11.7 14.5 22.0 26.3
Pump pressure nominal bar 4.0 4.0 3.9 3.7 3.2 2.7
Pump flow nominal L/min 20.1 26.6 33.6 43.8 62.6 84.1
Volume water tank L 100 100 100 100 100 100
Cat. No. 400-440 V; 3/PE; 50 Hz   E6813008 E6813010 E6813012 E6813014 E6813016 E6813018
Cat. No. 440-480 V; 3/PE; 60 Hz   E6813208 E6813210 E6813212 E6813214 E6813216 E6813218


SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

* at 10 °C water outlet temperature and 25 °C ambient temperature, for 50 Hz versions

UC Maxi Standard

Technical features UC-0300 ST UC-0400 ST UC-0500 ST UC-0650 ST UC-0800 ST UC-1000 ST UC-1350 ST UC-1700 ST UC-2400 ST
Select to compare:
Working
temp. range		 °C -5…25 -5…25 -5…25 -5…25 -5…25 -5…25 -5…25 -5…25 -5…25
Ambient
temp. range		 °C -15…45 -15…45 -15…45 -15…45 -15…45 -15…45 -15…45 -15…45 -15…45
Cooling output* kW 34.1 43.3 48.7 64.4 87.9 106.4 139.2 175.7 265.0
Cat. No. 400-440 V;
3/PE; 50 Hz		 E6813120 E6813122 E6813124 E6813126 E6812128 E6812130 E6812132 E6812134 E6812136
Cat. No. 440-480 V;
3/PE; 60 Hz		 E6813320 E6813322 E6813324 E6813326 E6812328 E6812330 E6812332 E6812334 E6812336


SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

UC Maxi Superplus

Technical features UC-0300 SP UC-0400 SP UC-0500 SP UC-0650 SP UC-0800 SP UC-1000 SP UC-1350 SP UC-1700 SP UC-2400 SP
Select to compare:
Working temp. range °C -5…25 -5…25 -5…25 -5…25 -5…25 -5…25 -5…25 -5…25 -5…25
Ambient temp. range °C -15…45 -15…45 -15…45 -15…45 -15…45 -15…45 -15…45 -15…45 -15…45
Cooling output* kW 34.1 43.3 48.7 64.4 87.9 106.4 139.2 175.7 265.0
Pump pressure nominal bar 3.9 3.6 3.3 3.7 3.4 3.3 4.3 3.6 3.8
Pump flow nominal L/min 98.0 123.0 150.0 196.0 247.0 299.0 392.0 494.0 733.0
Volume water tank L 200 200 200 300 300 500 500 500 500
Cat. No. 400-440 V;
3/PE; 50 Hz		 E6813020 E6813022 E6813024 E6813026 E6812028 E6812030 E6812032 E6812034 E6812036
Cat. No. 440-480 V;
3/PE; 60 Hz		 E6813220 E6813222 E6813224 E6813226 E6812228 E6812230 E6812232 E6812234 E6812236


SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY

SUMMARY
