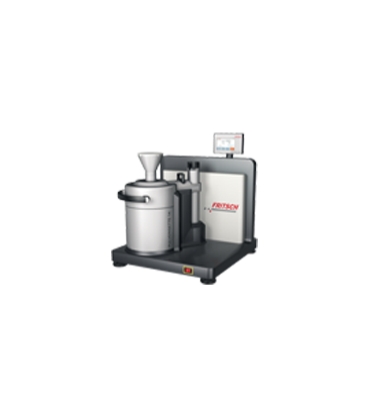

Variable Speed Rotor Mill PULVERISETTE 14 premium line

code : PULVERISETTE 14

Fast pre- and fine-grinding in one instrument

The FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 premium line offers impact, shearing and cutting comminution in one instrument – with a higher performance, better cooling and is significantly quieter than comparable instruments.
Its powerful motor is ideal for the particularly fast comminution of soft to medium-hard, brittle as well as fibrous materials and temperature-sensitive samples with an extremely fast sample throughput of up to 15 litres and more per hour, depending on the material and parameter settings. Even particularly hard and fatty materials such as feed pellets can be easily comminuted with the PULVERISETTE 14 premium line. Samples which are difficult to grind or extremely temperature-sensitive (e.g. plastics) can be embrittled with the addition of liquid nitrogen and subsequently ground in the PULVERISETTE 14 premium line.
The heavy-duty motor and especially durable ceramic bearings ensure a particularly high impact and rotor speed with an extra powerful 22,000 rpm.

Your advantage: finer results in shorter times. Due to its high performance, the PULVERISETTE 14 premium line is the ideal Variable Speed Rotor Mill for comminution at pilot plant-scale in the plastics industry.

Powerful grinding with 22,000 rpm for particularly fast sample throughput
Max. feed size < 15 mm, sample throughput of up to 15 l/h and more
Final fineness d50 < 40 μm, sieve rings 0.08 – 6 mm
Extremely high impact speed of the rotor (111 m/s = 399.6 km/h)
Multifunctional with impact or cutting rotor in one instrument

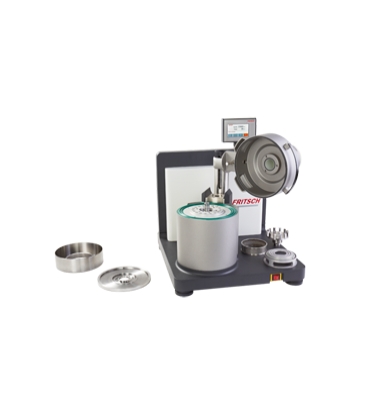

Simple, tool-free changing of rotor, collecting vessel, sieve ring, labyrinth disk and -seal
Easy cleaning due to Clean Design
Efficient cooling of the grinding chamber due to extremely high airflow
Highly durable low-wear rotors with cooling fins made of stainless steel
Grinding chamber made of stainless steel or PTFE-coated
Grinding parts made of stainless steel and pure titanium
Maintenance-free three-phase motor with regulated rotor speed 6,000 – 22,000 rpm (max. impact speed 399.6 km/h)
High speed stability even under full load
Wear-free labyrinth seal between the grinding chamber and drive motor
Removable dust filter for convenient cleaning
Ergonomic operation with touchscreen
USB interface as well as integrated regulation function for the new Vibratory Feeder LABORETTE 24
AutoLOCK grinding chamber for incredibly safe operation
Significantly better cooling of the sample
Pleasantly quiet operation
Extensive accessories available – easing your laboratory tasks

TECHNICAL DATA

Working principle	impact force
Optimal for material type	soft, medium-hard, brittle, fibrous and temperature-sensitive samples
Grinding tools	impact rotor, sieve rings, impact bar, cutting rotor
Materials of the grinding tools	stainless steel, pure titanium and PTFE-coated
Max. feed size (depending on the material)	< 15 mm
Min. sample quantity	< 10 ml
Max. throughput (depending on the material and sieve size)	15 l/h
Final fineness (sieve inserts)	0.08 - 6 mm
Feeding	batchwise/continuous
Rotor speed	6,000 - 22,000 rpm (max. impact speed 399.6 km/h)
Electrical Details, additional voltages available upon request	200-240 V/1~, 50-60 Hz, 2500 Watt
Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground , adjusted rotor-speed and instrument configuration)	approx. LpAd = 70 dB
Weight	40 kg
Dimensions (W x D x H)	bench top instrument 55 x 52 x 63 cm
