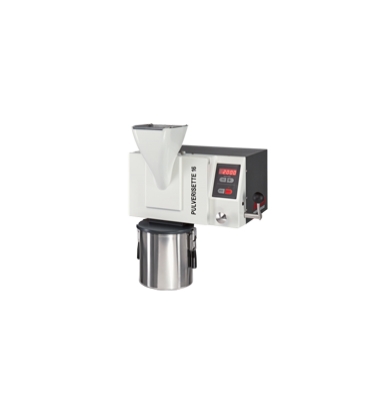

Cross Beater Mill - cast iron grinding insert PULVERISETTE 16

code : PULVERISETTE 16

The fast mill for all tasks

With a freely adjustable rotor speed of 2,000 – 4,000 rpm, the FRITSCH Cross Beater Mill PULVERISETTE 16 is the ideal universal mill for fast and gentle pre-crushing and fine-grinding of medium-hard, brittle materials up to a Mohs hardness of 6 in laboratories, pilot plants and industry.
Comminution can take place batchwise or continuously. The maximum feed size for bulk solids is up to 25 mm. For batchwise operation, a 5 litre collecting vessel with filter hose is delivered as standard. A 30 litre collecting vessel with filter hose is also available for larger quantities. The final fineness depends on the selection of the bottom sieve and the breaking properties of the respective material. A final fineness of < 100 μm can often be achieved after the first step due to the powerful drive and a rotor speed of up to 4,000 rpm.
The PULVERISETTE 16 offers highest operational safety: if the quick-clamping lock is opened unintentionally, a safety switch activates the motor brake so that the rotor comes to a stop in less than 0.5 seconds.

  • Max. feed size 25 mm
  • Final fineness < 100 μm already in the first step depending on the material
  • Ideal for the comminution of coal, coke, lime or slate
  • Perfect for fast work with a high throughput
  • Easy-to-change bottom sieves with perforations sizes of 0.12-10 mm
  • Easy cleaning due to grinding tools that are removable without tools
  • Speed adjustment for different applications
  • Batchwise or continuous operation possible

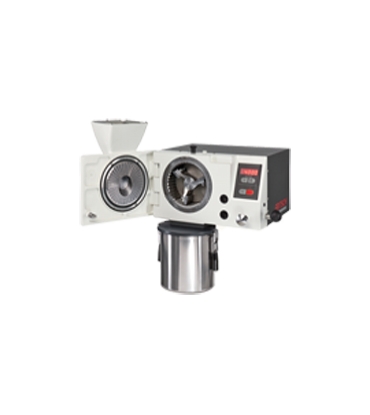

  • Practical grinding chamber quick-clamping lock
  • Easily replaceable impact plates
  • 1.1 kW brake motor, adjustable speed of 2,000-4,000 rpm (in 200 steps)
  • Toothed grinding tools made of cast iron
  • Trapezoidal and round perforation bottom sieves made of stainless steel in various sizes

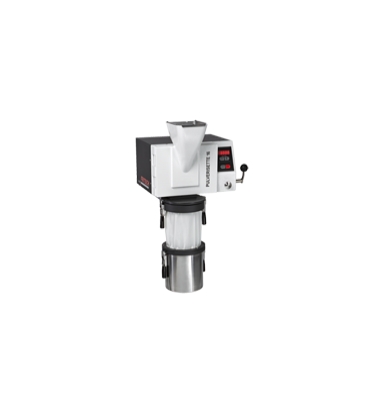

  • Useable as a table-mounted or free-standing instrument with support stand (order separately)
  • Extensive accessories for simplifying your daily work

TECHNICAL DATA

Working principle impact
Optimal for material type medium-hard, brittle
Grinding tools cross beater
Materials of the grinding tools cast iron
Max. feed size (depending on the material) 25 mm
Min. sample quantity approx. 40 - 50 ml
Max. throughput (depending on the material and sieve size) approx. 80 l/h
Final fineness (sieve inserts) 0.12 - 10 mm
Feeding batchwise/continuous
Rotor speed 2,000 - 4,000 rpm
Electrical Details 200-240 V/1~, 50/60 Hz, 1500 Watt
Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on material to be ground and instrument configuration ) approx. LpAd = 86 dB
Weight 45 kg
Dimensions (W x D x H) table-mounting or on stand 50 x 50 x 58 cm

Accessories Cross Beater Mill - cast iron grinding insert PULVERISETTE 16
