Heavy Duty Analytical Sieve Shaker ANALYSETTE 18

Share

Heavy Duty Analytical Sieve Shaker ANALYSETTE 18

code : ANALYSETTE 18

Effective sieving of large quantities

The ANALYSETTE 18 is the robust, Heavy Duty Analytical Sieve Shaker from FRITSCH. It can effortlessly sieve up to 15 kg of material between 20 μm and 125 mm. The three-dimensional sieving motion ensures particularly fast sieving results without manual re-sieving, and also optimal reproducibility.
The ANALYSETTE 18 is used for particle size analysis and portioning of coarse-grained materials. The maximum input quantity of 15 kg for the material to be sieved and the sieve stack also allows use in pilot line production or for serial analysis of large quantities.
It is particularly suitable for particle size analysis and portioning of coarse-grained materials through dry sieving or wet sieving with conversion kit.

  • Material quantity up to 15 kg in a measurement range of 20 µm - 125 mm
  • Three-dimensional sieving action for fast sieving results, without manual re-sieving, optimal reproducibility
  • Conversion kit for wet sieving
  • Universal support plate for sieves dia. 300, 315, 350, 400, 450 mm respectively 12" - 18" (adapter for sieves 200 mm respectively 8″ dia. required)
  • Automatic amplitude control with continuous acceleration measurement of the whole sieve stack
  • Operation by remote control via a separate, handy operating unit
  • TwinNut fastening system for sieves and clamping lid ensure constant tensioning pressure and stability
  • Up to 12 test sieves (65 mm height) with sieve pans and lid can be used per working cycle
  • Multilingual AUTOSIEVE programme for automatic evaluation, monitoring, documentation of results
  • Sieves can be calibrated according to ISO 9001
  • Robust design for heavy-duty operating conditions
  • Two maintenance-free unbalanced motor
  • Sieves in mesh widths available from 20 µm to 125 mm according to ISO 3310-1, ASTM E-11-1995

TECHNICAL DATA

Method of analysis sieving
Sieving action Three-dimensional
Dry sieving

Measuring range

 20 µm - 125 mm*
Max. sample quantity approx. 15 kg*
Sieving time approx. 5 - 60 min*
Wet sieving with conversion kit
Measuring range 20 µm - 10 mm*
Max. sample quantity approx. 100 - 1000 g*
Sieving time approx. 5 - 10 min*
Further details
Sieve diameters 300 mm, 315 mm, 350 mm, 400 mm, 450 mm and 12"- 18" (200 mm resp. 8″ dia. adapter required)
Max. number of sieves per sieve stack 12 (65 mm height)
Max. weight of sieve stack 42 kg
Max. height of sieve stack 845 mm
Amplitude 0.1 - 2 mm
Amplitude control automatic
Automatic sieve analysis with evaluation software AUTOSIEVE yes
Testing instrument calibration according to ISO 9001 yes
Interface yes
Intermittent mode yes
Memory for 99 parameter combinations yes
Electrical details 230 V/1~, 50-60 Hz, 200 Watt
Instrument also available in the following voltage 115 V/1~, 50-60 Hz, 200 Watt - order no. 18.3010.00)
Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be sieved and instrument configuration) Approx. LpAd = 73 dB
Weight 135 kg
Dimensions (W x D x H) floor instrument 58 x 59 x 130 cm

* Depending on the material to be sieved and the sieves used

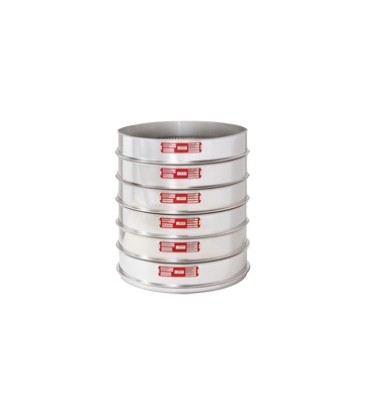

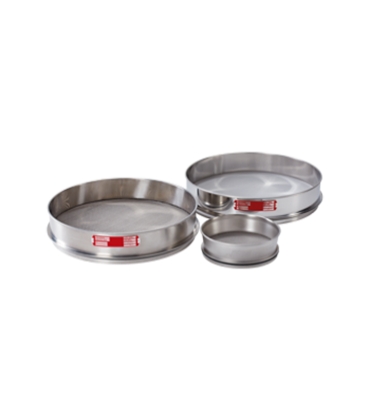

Accessories Heavy Duty Analytical Sieve Shaker ANALYSETTE 18

Related Products

TechnoScientific

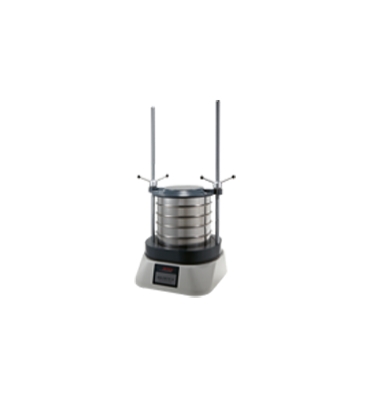

Vibratory Sieve Shaker ANALYSETTE 3 SPARTAN
