Magna Microscope

code :

The Power of Zoom

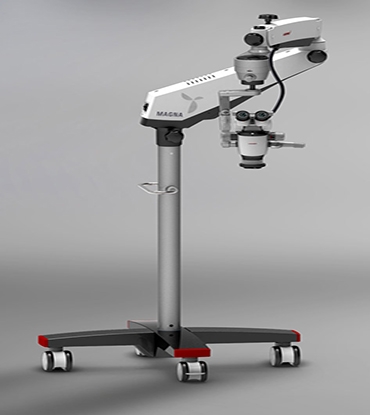

The Labomed® Magna dental microscope brings to your practice the power of crystal clear visualization in a compact, ergonomic design. The system features an Automatic Balancing Arm (ABA) that gives users 360 degrees of freedom in positioning the microscope. A highly responsive apochromatic zoom system ensures ease in landing on the ideal magnification. Super bright, long lasting LED illumination means dental professionals won't miss a thing.



Magna Advantages:

A brilliantly designed electromagnetic brake system
A brilliantly designed electromagnetic brake system provides ultimate flexibility in positioning the microscope. Two conveniently located brake-release buttons make the system highly intuitive. Holding down either button allows the microscope to move with ease. Upon release, the microscope immediately locks into place.
Apochromatic premium optics are packaged

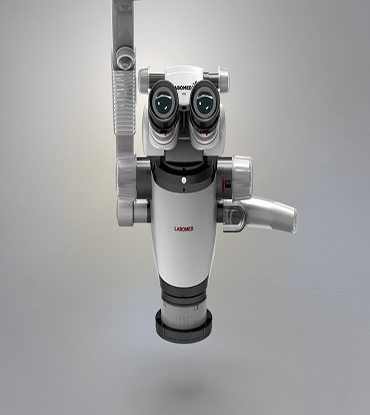

Apochromatic premium optics are packaged in a convenient zoom system to provide a continuous range of magnifications. The NuVar™ variable working distance objective (f300-f400mm) comes standard. Proprietary MaxLite™ coatings promise reflection-free, durable optics, ensuring the highest fidelity resolution.
Magna

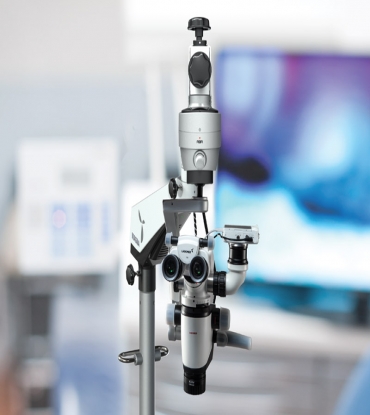

A super bright LED provides shadow-free light with a natural daylight temperature (over 100,000 lux) for up to 60,000 hours. For digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™.
"We use Labomed Prima microscopes exclusively at all Next Level Endo courses and associated lectures. The edge-to-edge sharpness of the image is unsurpassed. Personally, I use the Magna in my live demonstration operatory. The zoom focus feature and the electro-magnetic braking system really lead this microscope to be a cut above the rest. Tremendous quality and clarity of optics! And, I am quite confident that Labomed has the best value proposition of all of the competing brands."

Dr. Martin Trope
Next Level Endo, Philadelphia, PA
"…the lenses are state-of-the-art and construction is of the highest quality. The best of service and product is a hard combination to beat."

It has been a pleasure working with Labomed. As an endodontist and educator, the support I have received is unsurpassed by any other company. My CE courses as well as my institution consistently receive 100% attention. No detail is too small and nothing is left to chance. I cannot ask for a better relationship. As for the equipment, the lenses are state-of-the-art and construction is of the highest quality. The best of service and product is a hard combination to beat.

James G. Hupp, DMD, MS
Roseman University
Salt Lake City, Utah, USA

Hear from Dentists who are using Labomed Dental Microscopes in their practice:


“I am quite confident that Labomed has the best value proposition of all of the competing brands“

We use Labomed Prima microscopes exclusively at all Next Level Endo courses and associated lectures. The edge-to-edge sharpness of the image is unsurpassed. Personally, I use the Magna in my live demonstration operatory. The zoom focus feature and the electro-magnetic braking system really lead this microscope to be a cut above the rest. Tremendous quality and clarity of optics! And, I am quite confident that Labomed has the best value proposition of all of the competing brands.

Martin Trope, DMD
Next Level Endo
Philadelphia, PA, USA


“…the lenses are state-of-the-art and construction is of the highest quality. The best of service and product is a hard combination to beat.“

It has been a pleasure working with Labomed. As an endodontist and educator, the support I have received is unsurpassed by any other company. My CE courses as well as my institution consistently receive 100% attention. No detail is too small and nothing is left to chance. I cannot ask for a better relationship. As for the equipment, the lenses are state-of-the-art and construction is of the highest quality. The best of service and product is a hard combination to beat.

James G. Hupp, DMD, MS
Roseman University
Salt Lake City, Utah, USA


“…the quality and price of the equipment is unmatched!“

My experience with Labomed [TM] has been nothing short of extraordinary! This has been - hands down - the best experience with any dental company I've ever had. Not to mention the quality and price of the equipment is unmatched! Thank you!

Aaron Palmer, DMD
Smile Design Ellsworth
Ellsworth, Maine, USA


"I do not see any significant difference between Labomed and Zeiss and Global which I have used for years, and I prefer the Labomed microscope"

I am an endodontist and I have used the Labomed microscope for about four years and I find the quality of optics, suspension system and light source very good, I do not see any significant difference between Labomed and Zeiss and Global which I have used for years, and I prefer the Labomed microscope.

I recommend that general dentists use microscopes as I find great advantages of the magnification when placing restorations as well as placing delicate sutures. My posture has dramatically improved and backaches have subsided as I do not stress my neck looking down.

Mario Abdennour, DMD, MMSc
Harvard School of Dental Medicine, Faculty at the Advanced Graduate Endodontic Program, division of the department of Restorative Dentistry and Biomaterials Sciences
Boston, Mass., USA


“They followed up several times to make sure the install was perfect. I will definitely use them again.“

After seeing Labomed [TM] at the AAE convention I called to see what they offered. They were very willing to allow me to try out their mobile model of their microscope. They had it shipped to my location and had a local rep assemble it. After using the microscope, I found it to be comparable to the Zeiss, which I own 4 of, and Global models. Especially with the LED light. They even have an adjustable focal distance that really helps if different people are using the microscope. After deciding on the microscope they allowed me to use the model until the install. I had an issue with the distance from my wall to the patient chair. [They were] able make a new arm which was longer in order to accommodate my space. The install was great with little interruption in my day. They followed up several times to make sure the install was perfect. I will definitely use them again.

Yogesh Patel, DDS
North Dallas Endodontics
Dallas, Texas, USA


“The Labomed Microscope is a high quality piece of equipment at a low price compared to its competition”

I have used the Labomed Microscope for about two years. As one gets older we begin to appreciate how good practice ergonomics and vision assist us in both longevity and the quality of our dentistry. The Labomed Microscope is a high quality piece of equipment at a low price compared to its competition.

Bruce Crispin, DDS, MS
Esthetic Professionals, Founder/CEO
Tarzana, California, USA


“Your work can do nothing but get better”

You really don’t know how much pain you are in till you find something that makes you better. That’s what my Labomed Microscope did for me! My neck is completely pain free! I have so much energy at the end of the day because I’m not leaning over patients all day. I also think my lab loves me way more than they used to. When you go from 4.5 loupes to 8+ magnification with a microscope your work can do nothing but get better.

Coty Shores, DDS
Shores Dental Company
Duncan, Oklahoma, USA


"All of these benefits made the purchase decision very easy!"

Since buying our Labomed dental microscope, Endodontic procedures are going extremely well at our office. Patient acceptance and satisfaction are up considerably. We have seen an increase in billings, mainly because the microscope enables us to provide more treatments, due to far better visibility. All of these benefits made the purchase decision very easy!

Magna Specifications


Binocular Tubes 0-210° tilting head with Rotoplate, DBSi (inclined double beam splitter), Double Iris and DSLR Adapter
IPD 50-75 mm
Eyepieces WF 10X/18 mm lockable eyepieces, one with resolution markup to assist in diopter adjustment
Diopter Adjustment ± 5mm with diopter lock
Apochromatic Magnichanger Galilean Zoom 1:6, convertible to 8 step magnichanger
Zoom Range 0.4-2.5X
Objective NuVar system with variable focal length adjustment from 300-400 mm with fine focus mechanism
Microscope Carrier ABA (Automatic Balancing Arm) with electromagnetic release for easy, drift free positioning
Light Source 50 watt LED, 90-240V
Maximum Wattage 195 watts
Built-in Filters Yellow and Green
Vertical Movement of Arm ± 250 mm, power saving feature with light cut-off in park position
Stand Robust, vibration-free stand on a cross base with four lockable caster wheels
Mounting Options Floor stand, wall mount and ceiling mount

Magna line diagram
Dimensions in mm

Accessories Magna Microscope

Labomed ProLine Accessories for Prima Series Microscopes

Labomed Magna Microscope - English
