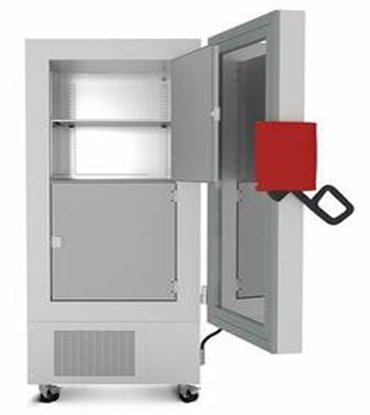

Series UF V | Ultralow temperature freezers with VIP insulation and electromechanical door lock

code : UFV500

Important characteristics

  • Temperature range: -40 °C to -86 °C
  • Refrigeration with cascade compressor refrigeration unit
  • CFC-free safety refrigerants R-404A and R-508B
  • Door hinged right or left
  • RFID controlled Access (depending on version)
  • Data Logger USB (depending on version)
  • Water cooling (depending on version)
  • Electromechanical door latch
  • 4 compartment doors made of ABS plastic
  • Inner chamber made of stainless steel
  • Thermal insulation using vacuum insulating panels and PUR foam
  • Battery-backed alarm system
  • Computer interface: RS 422
  • Analog output, 4 – 20 mA
  • Zero-voltage alarm contact
  • Elapsed time indicator
  • 3 stainless steel shelves

Select version
Rated voltage Option model Version Art. No. MSRP*[?] Selection Bookmark
Model UF V 500
208…240 V 1~ 60 Hz

Door hinged right, data logger USB

 UFV500UL-240V-R¹ 9020-0234 - +

Door hinged left, data logger USB

 UFV500UL-240V-L¹ 9020-0220 - +
120 V 1~ 60 Hz

Door hinged right, data logger USB

 UFV500UL-120V-R¹ 9020-0235 - +

Door hinged left, data logger USB

 UFV500UL-120V-L¹ 9020-0222 - +
230 V 1~ 50 Hz

Door hinged right, RFID system

 UFV500-230V-R¹ 9020-0236 - +

Door hinged left, RFID system

 UFV500-230V-L¹ 9020-0213 - +

Door hinged right, Water cooling, RFID system

 UFV500-230V-RW¹ 9020-0259 - +

Door hinged left, Water cooling, RFID system

 UFV500-230V-LW¹ 9020-0260 - +
* Recommended retail price
Designation UFV500UL-240V-R¹ UFV500UL-240V-L¹ UFV500UL-120V-R¹ UFV500UL-120V-L¹ UFV500-230V-R¹ UFV500-230V-RW¹ UFV500-230V-L¹ UFV500-230V-LW¹
Option model Door hinged right, data logger USB Door hinged left, data logger USB Door hinged right, data logger USB Door hinged left, data logger USB Door hinged right, RFID system Door hinged right, Water cooling, RFID system Door hinged left, RFID system Door hinged left, Water cooling, RFID system
Order number 9020-0234 9020-0220 9020-0235 9020-0222 9020-0236 9020-0259 9020-0213 9020-0260
Measures
Interior volume [L] 483 483 483 483 483 483 483 483
Net weight of the unit (empty) [kg] 320 320 320 320 320 320 320 320
permitted load [kg] 200 200 200 200 200 200 200 200
Permitted load of individual compartment [kg] 50 50 50 50 50 50 50 50
Load per rack [kg] 50 50 50 50 50 50 50 50
Doors
Unit doors 1 1 1 1 1 1 1 1
Internal Dimensions
Width [mm] 619 619 619 619 619 619 619 619
Height [mm] 1300 1300 1300 1300 1300 1300 1300 1300
Depth [mm] 600 600 600 600 600 600 600 600
Outer dimensions
Width net [mm] 830 830 830 830 830 830 830 830
Height net [mm] 1985 1985 1985 1985 1985 1985 1985 1985
Depth net [mm] 885 885 885 885 885 885 885 885
Wall clearance back [mm] 100 100 100 100 100 100 100 100
Wall clearance sidewise [mm] 175 175 175 175 175 175 175 175
Environment-specific data
Energy consumption at set-point -80 °C and ambient temperature = 25 °C (+/- 10 %) [kWh/d] 14.9 14.9 12.5 12.5 13.9 13.9 13.9 13.9
