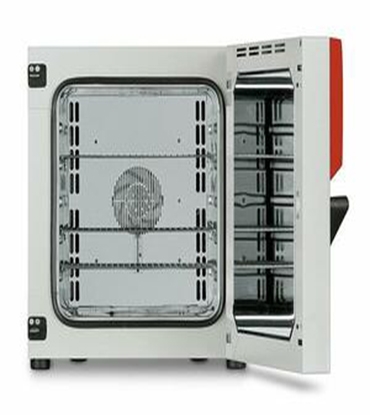

Series FD 56 | Drying and heating chambers Avantgarde.Line with forced convection

code : FD56

Important characteristics

  • Temperature range: ambient temperature plus 10 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line™ technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Stackable
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Select version
Rated voltage Option model Version Art. No. MSRP*[?] Selection Bookmark
Model FD 56
230 V 1~ 50/60 Hz

Standard

 FD056-230V¹ 9010-0303 - +
120 V 1~ 60 Hz

Standard

 FD056UL-120V¹ 9010-0304 - +
* Recommended retail price



Designation FD056UL-120V¹ FD056-230V¹
Option model Standard Standard
Order number 9010-0304 9010-0303
Measures
Interior volume [L] 60 60
Net weight of the unit (empty) [kg] 39 39
permitted load [kg] 70 70
Load per rack [kg] 30 30
Doors
Unit doors 1 1
Internal Dimensions
Width [mm] 400 400
Height [mm] 440 440
Depth [mm] 345 345

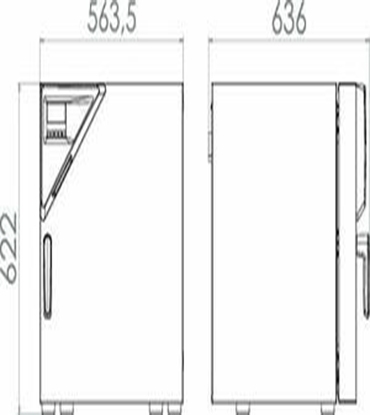

Outer dimensions
Width net [mm] 560 560
Height net [mm] 625 625
Depth net [mm] 565 565
Wall clearance back [mm] 160 160
Wall clearance sidewise [mm] 100 100
Environment-specific data
Energy consumption at 150 °C [Wh/h] 290 290
Sound-pressure level [dB(A)] 43 43
Fixtures
Number of shelves (std./max.) 2/4 2/4
Data
  - -
Online
Shop URL https://www.binder-shop.com/us/oven/oven-with-forced-convection-fd056ul-120v -
Performance Data Temperature
Temperature range 10 °C above ambient temperature to [°C] 300 300
Temperature variation at 150 °C [± K] 1.7 1.7
Temperature fluctuation at 150 °C [± K] 0.3 0.3
Heating-up time to 150 °C [min] 15 15
Recovery time after 30 seconds door open at 150 °C [min] 4 4
Electrical data
Rated Voltage [V] 120 230
Power frequency [Hz] 60 50/60
Nominal power [kW] 1.2 1.1
Unit fuse [A] 12.5 6.3
Phase (Nominal voltage) 1~ 1~
  1. All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10 %. The temperature data is determined to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. Technical data refers to 100 % fan speed. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
