Prima OPH

code :

High Value Technology in Cataract Removal

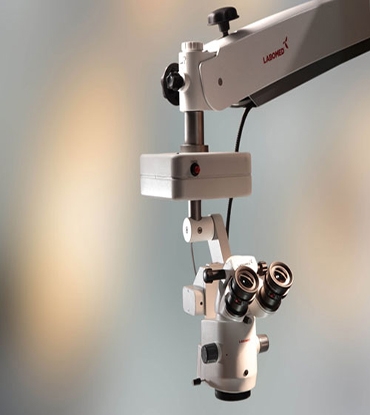

The Prima OPH is a versatile microscope designed for both surgical and clinical environments.  With an intelligent LED illumination system that runs long and cool, an Apochromatic optical system, and superb RedReflex system, and motorized movement, this microscope delivers on the promise of high performance at affordability.



Prima OPH Advantages:

bright LED
A super bright LED produces over 80,000 Lux with a color temperature of 5700 degrees Kelvin to produce a natural daylight illumination.  A run time of  60,000 hours eliminates the need for bulb change. Electronics built directly into the swivel arm make the Prima OPH the most compact solution in its class.
Apochromatic
An Apochromatic optical system produces sharp, aberration-free images at every step. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and anti-scratch properties, yielding artifact free and durable optics.

Red reflex
RedReflex is made possible in the Prima OPH thanks to an ingenious optical design, enabling visualization of an illuminated retina for easy detection of ruptured vessels, arteries, or damage to the optic disc.
Prima OPH

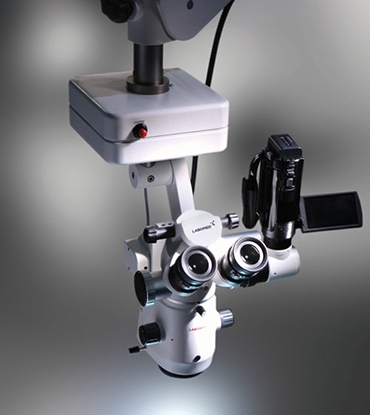

Ophthalmologists can use a digital SLR or video camera, thanks to a wide selection of adapters available through the ProLine™. A proprietary iVu S5 camera provides an excellent solution with its all-in-one high definition imaging, streaming, and capture options.



Microscope

Binocular Tube 45° inclined head
Apochromatic Magnichanger 5 steps: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X
Eyepiece WF 10X/16 mm with eye guards, diopter adjustment ± 5 mm and diopter lock; Optional: WF 12.5X/16 mm
Objective
f-200 mm
Optional: f-175 mm
Light Source 50W LED
Built-in-Filters Green & Blue
Vertical Movement
550 mm
Microscope carriers Multi-axial (XYZ) foot control (PRIMA OPH X-Y & Z AXIS)
Microscope carriers Single axis (Z) foot control (PRIMA OPH Z AXIS)



Package Contents

  • Tools for Securing Base and Pillar
  • Sterilizable Knob Covers
  • Nylon Dust Cover

Accessories (Optional)

  • 0-210° tiltable ergonomic head
  • Double beam splitter
  • Assistant binocular attachment
  • ProLine range of camera adapters
