eVO 300

code :

Efficient Microscope Design for a Streamlined Office

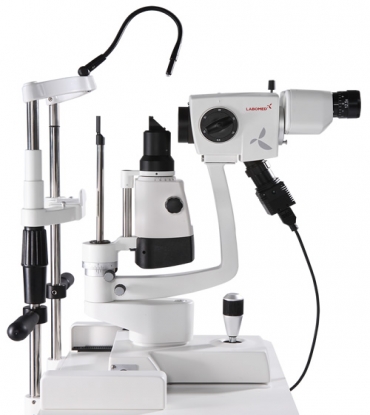

The eVO 300 delivers a streamlined design with high precision apochromatic optics for accurate anatomical observations, corrected for spherical and chromatic aberrations to ensure comfortable and reliable use. Eco-friendly illumination options, lead-free high dispersion glass, paints and materials minimize the system's environmental impact without sacrificing performance and durability. The eVO 300 represents all that a slit lamp should be.



eVO 300 Advantages:

apochromatic optical

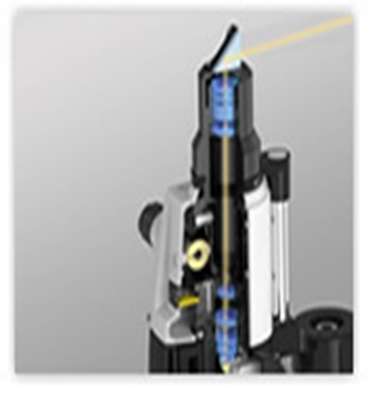

An apochromatic optical design ensures crisp, strain-free images with superior color fidelity and contrast. The eVO™ series of slit lamps is part of a new generation of our proprietary MaxLite™ coated optics, with the latest advancements in anti-reflective and scratch resistant surface technology for a more pristine image over time.
eVO 300

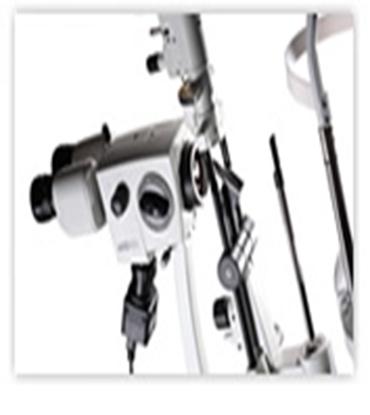

A built-in photo port makes documentation simpler and more affordable. Adapters are available for most digital and analog cameras, all while maintaining the system's streamlined form factor. For convenience in fluorescein exams, the microscope has a flip-in Wrattan filter built into the optical chamber.
eVO 300
Efficient and compact illumination design translates to a bright and evenly illuminated image at all magnifications. Halogen and cool LED options are available within a compact bulb housing.



eVO 300 Drawing

Microscope

Microscope Galilean
Magnification 5 step: 6.5X, 10X, 16X, 25X, 40X
Eyepiece WF 12.5X/18mm, diopter adj. ± 5mm
IPD Range
48.5 - 77mm
Slit Length/Width 0 - 13.5mm
Slit Apertures 0.6, 5.8, 9, 13.5mm and continuous 1.5 to 12.0mm
Slit Rotation
0 - 180°
Slit Tilt -
Filters Red free, Cobalt blue, Heat absorbing

Movement Ranges:
Longitudinal (in/out) 100mm
Lateral (left/right) 107mm
Vertical (up/down) 30mm
Chin Rest Range 80mm

Illumination Halogen 6V-20W
Table Base Size 465mm X 316mm
Weight 25kg (packed)
Voltage 100-240V AC
Frequency 50-60 Hz


Accessories (Optional)

  • Tonometer, Beam splitter, Cameras, Diffuser, Motorized table

Accessories eVO 300
